產品編號：GEGZ...HS/K 31.75～139.7
滑動磨擦副： 鋼/鋼
產品特點：外圈徑向分成兩半，中間有一隔套，內、外圈材料均為軸承鋼，淬火，磷化，滑動表面涂敷二硫化鉬。
使用溫度范圍：-50℃～+150℃
????

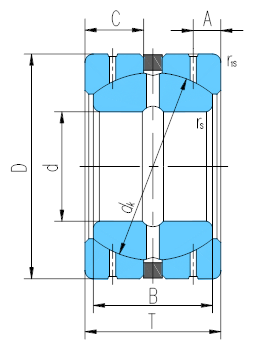

軸 承 型 號 Bearing number | 外 形 尺 寸 Dimensions mm/inch | 額定載荷 Load ratings kN | 重 量 Weight ≈kg | |||||||||
d | D | B | C | T | A | dk | rs min | r1s max | 動載荷 Dynamic | 靜載荷 Static | ||
GEGZ31HS/K | 31.750 | 61.913 | 35.306 | 16.764 | 38.1 | 7.925 | 54.7 | 0.6 | 2.54 | 99 | 395 | 0.65 |
1.25 | 2.4375 | 1.39 | 0.66 | 1.5 | 0.312 | 2.154 | 0.024 | 0.1 | ||||
GEGZ38HS/K | 38.100 | 71.438 | 40.132 | 20.066 | 44.704 | 8.331 | 63.9 | 0.6 | 2.54 | 135 | 540 | 1.04 |
1.5 | 2.8125 | 1.58 | 0.79 | 1.76 | 0.328 | 2.516 | 0.024 | 0.1 | ||||
GEGZ44HS/K | 44.450 | 80.963 | 46.228 | 23.368 | 51.308 | 9.525 | 73 | 0.6 | 3.56 | 180 | 720 | 1.41 |
1.75 | 3.1875 | 1.82 | 0.92 | 2.02 | 0.375 | 2.874 | 0.024 | 0.14 | ||||
GEGZ50HS/K | 50.800 | 90.488 | 52.578 | 26.67 | 57.912 | 11.506 | 82 | 0.6 | 3.56 | 230 | 920 | 1.95 |
2 | 3.5625 | 2.07 | 1.05 | 2.28 | 0.453 | 3.228 | 0.024 | 0.14 | ||||
GEGZ57HS/K | 57.150 | 100.013 | 58.877 | 29.972 | 64.516 | 12.7 | 92 | 0.6 | 3.56 | 295 | 1180 | 2.62 |
2.25 | 3.9375 | 2.318 | 1.18 | 2.54 | 0.5 | 3.622 | 0.024 | 0.14 | ||||
GEGZ63HS/K | 63.500 | 111.125 | 64.643 | 32.385 | 71.12 | 13.081 | 100 | 1 | 4.6 | 345 | 1380 | 3.57 |
2.5 | 4.375 | 2.545 | 1.275 | 2.8 | 0.515 | 3.937 | 0.04 | 0.18 | ||||
GEGZ69HS/K | 69.850 | 120.650 | 70.866 | 35.687 | 77.724 | 14.681 | 109.5 | 1 | 4.6 | 420 | 1680 | 4.55 |
2.75 | 4.75 | 2.79 | 1.405 | 3.06 | 0.578 | 4.311 | 0.04 | 0.18 | ||||
GEGZ76HS/K | 76.200 | 130.175 | 76.759 | 39.243 | 84.836 | 16.662 | 119 | 1 | 4.6 | 500 | 2000 | 5.70 |
3 | 5.125 | 3.022 | 1.545 | 3.34 | 0.656 | 4.685 | 0.04 | 0.18 | ||||
GEGZ82HS/K | 82.550 | 139.700 | 82.931 | 42.545 | 91.44 | 17.856 | 128 | 1 | 4.6 | 585 | 2340 | 7.02 |
3.25 | 5.5 | 3.265 | 1.675 | 3.6 | 0.703 | 5.039 | 0.04 | 0.18 | ||||
GEGZ88HS/K | 88.900 | 149.225 | 90.424 | 45.847 | 98.044 | 19.431 | 137 | 1 | 4.6 | 675 | 2700 | 8.54 |
3.5 | 5.875 | 3.56 | 1.805 | 3.86 | 0.765 | 5.394 | 0.04 | 0.18 | ||||
GEGZ95HS/K | 95.250 | 158.750 | 94.945 | 49.149 | 104.648 | 19.837 | 146 | 1 | 4.6 | 775 | 3100 | 10.2 |
3.75 | 6.25 | 3.738 | 1.935 | 4.12 | 0.781 | 5.748 | 0.04 | 0.18 | ||||
GEGZ101HS/K | 101.600 | 177.800 | 107.315 | 55.753 | 117.856 | 22.225 | 164.5 | 1 | 4.6 | 1000 | 4000 | 15.1 |
4 | 7 | 4.225 | 2.195 | 4.64 | 0.875 | 6.476 | 0.04 | 0.18 | ||||
GEGZ114HS/K | 114.300 | 196.850 | 119.126 | 62.357 | 131.064 | 25.4 | 183 | 1 | 4.6 | 1230 | 4920 | 20.2 |
4.5 | 7.75 | 4.69 | 2.455 | 5.16 | 1 | 7.205 | 0.04 | 0.18 | ||||
GEGZ139HS/K | 139.700 | 222.250 | 125.730 | 66.421 | 139.192 | 34.798 | 207 | 1 | 4.6 | 1480 | 5920 | 25.1 |
5.5 | 8.75 | 4.95 | 2.615 | 5.48 | 1.37 | 8.15 | 0.04 | 0.18 | ||||
